[f2fs-dev] [PATCH v2 0/3] f2fs-tools: cache free segments count to improve perfmance

[f2fs-dev] [PATCH v2 0/3] f2fs-tools: cache free segments count to improve perfmance

[Wu Bo via Linux-f2fs-devel]

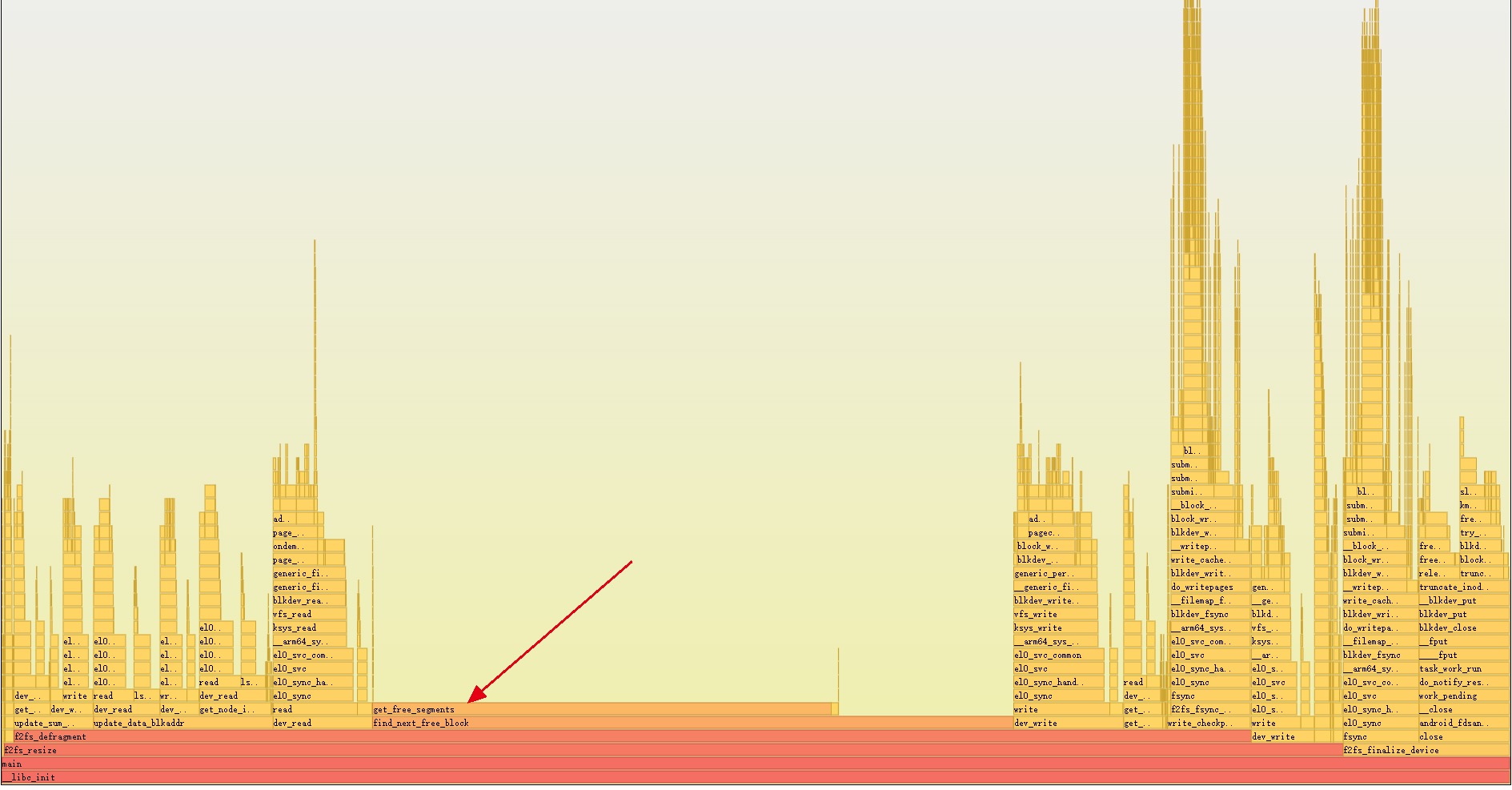

The performance flame graph of resize shows that 'get_free_segments()' consum
most user space time:
https://linkthinking.cn/images/resize_flame.jpg

Every calling 'get_free_segments()', it will traverses all segments to calculate
the free segments count. And this path is called a lot in resize & sload &
defrag.

If the free segments count is cached, these tools performance will be
improved.

Changed in v2:
  - Fixed some logic issues reviewed by Chao Yu

Wu Bo (3):
  f2fs-tools: use 'IS_CUR_SEGNO()' to check if it is current segment
  f2fs-tools: skip not matched segment when finding free block
  f2fs-tools: cache free segments count to improve perfmance

 fsck/f2fs.h    |  1 +
 fsck/mount.c   | 25 ++++++++++++-------------
 fsck/segment.c |  2 ++
 3 files changed, 15 insertions(+), 13 deletions(-)

--
2.25.1



_______________________________________________
Linux-f2fs-devel mailing list
Linux-f2fs-devel@lists.sourceforge.net
https://lists.sourceforge.net/lists/listinfo/linux-f2fs-devel

[f2fs-dev] [PATCH v2 1/3] f2fs-tools: use 'IS_CUR_SEGNO()' to check if it is current segment

[Wu Bo via Linux-f2fs-devel]

Use IS_CUR_SEGNO() here can make code more concise and readable.
---
 fsck/mount.c | 10 +---------
 1 file changed, 1 insertion(+), 9 deletions(-)

diff --git a/fsck/mount.c b/fsck/mount.c
index df0314d..e4372cf 100644
--- a/fsck/mount.c
+++ b/fsck/mount.c
@@ -2532,16 +2532,8 @@ void build_sit_area_bitmap(struct f2fs_sb_info *sbi)
 		ptr += SIT_VBLOCK_MAP_SIZE;

 		if (se->valid_blocks == 0x0 && is_usable_seg(sbi, segno)) {
-			if (le32_to_cpu(sbi->ckpt->cur_node_segno[0]) == segno ||
-				le32_to_cpu(sbi->ckpt->cur_data_segno[0]) == segno ||
-				le32_to_cpu(sbi->ckpt->cur_node_segno[1]) == segno ||
-				le32_to_cpu(sbi->ckpt->cur_data_segno[1]) == segno ||
-				le32_to_cpu(sbi->ckpt->cur_node_segno[2]) == segno ||
-				le32_to_cpu(sbi->ckpt->cur_data_segno[2]) == segno) {
-				continue;
-			} else {
+			if (!IS_CUR_SEGNO(sbi, segno))
 				free_segs++;
-			}
 		} else {
 			sum_vblocks += se->valid_blocks;
 		}
--
2.25.1



_______________________________________________
Linux-f2fs-devel mailing list
Linux-f2fs-devel@lists.sourceforge.net
https://lists.sourceforge.net/lists/listinfo/linux-f2fs-devel

[f2fs-dev] [PATCH v2 2/3] f2fs-tools: skip not matched segment when finding free block

[Wu Bo via Linux-f2fs-devel]

If the segment type is not matched, goto next segment to save time.
---
 fsck/mount.c | 6 ++++--
 1 file changed, 4 insertions(+), 2 deletions(-)

diff --git a/fsck/mount.c b/fsck/mount.c
index e4372cf..098e73d 100644
--- a/fsck/mount.c
+++ b/fsck/mount.c
@@ -2852,8 +2852,10 @@ next_segment:
 			}
 		}

-		if (type == want_type && !new_sec &&
-			!f2fs_test_bit(offset, (const char *)bitmap))
+		if (type != want_type)
+			goto next_segment;
+		else if (!new_sec &&
+				!f2fs_test_bit(offset, (const char *)bitmap))
 			return 0;

 		*to = left ? *to - 1: *to + 1;
--
2.25.1



_______________________________________________
Linux-f2fs-devel mailing list
Linux-f2fs-devel@lists.sourceforge.net
https://lists.sourceforge.net/lists/listinfo/linux-f2fs-devel

[f2fs-dev] [PATCH v2 3/3] f2fs-tools: cache free segments count to improve perfmance

[Wu Bo via Linux-f2fs-devel]

'get_free_segments()' is implemented by traversing all segments to
calculate the total free segments. It cosume much time.

Every time when call 'find_next_free_block()' this calculation will
do it again. So if we cache the free segments count, it will greatly
improve performance of dfrag & resize & sload.
---
 fsck/f2fs.h    | 1 +
 fsck/mount.c   | 9 +++++++--
 fsck/segment.c | 2 ++
 3 files changed, 10 insertions(+), 2 deletions(-)

diff --git a/fsck/f2fs.h b/fsck/f2fs.h
index e65644e..a7cdc4c 100644
--- a/fsck/f2fs.h
+++ b/fsck/f2fs.h
@@ -197,6 +197,7 @@ struct f2fs_sm_info {
 	unsigned int main_segments;
 	unsigned int reserved_segments;
 	unsigned int ovp_segments;
+	unsigned int free_segments;
 };

 struct f2fs_dentry_ptr {
diff --git a/fsck/mount.c b/fsck/mount.c
index 098e73d..0a37bc4 100644
--- a/fsck/mount.c
+++ b/fsck/mount.c
@@ -123,7 +123,7 @@ void update_free_segments(struct f2fs_sb_info *sbi)
 	if (c.dbg_lv)
 		return;

-	MSG(0, "\r [ %c ] Free segments: 0x%x", progress[i % 5], get_free_segments(sbi));
+	MSG(0, "\r [ %c ] Free segments: 0x%x", progress[i % 5], SM_I(sbi)->free_segments);
 	fflush(stdout);
 	i++;
 }
@@ -2430,6 +2430,10 @@ static int build_sit_entries(struct f2fs_sb_info *sbi)

 			check_block_count(sbi, segno, &sit);
 			seg_info_from_raw_sit(sbi, se, &sit);
+			if (se->valid_blocks == 0x0 &&
+				is_usable_seg(sbi, segno) &&
+				!IS_CUR_SEGNO(sbi, segno))
+				SM_I(sbi)->free_segments++;
 		}
 		start_blk += readed;
 	} while (start_blk < sit_blk_cnt);
@@ -2485,6 +2489,7 @@ static int early_build_segment_manager(struct f2fs_sb_info *sbi)
 	sm_info->ovp_segments = get_cp(overprov_segment_count);
 	sm_info->main_segments = get_sb(segment_count_main);
 	sm_info->ssa_blkaddr = get_sb(ssa_blkaddr);
+	sm_info->free_segments = 0;

 	if (build_sit_info(sbi) || build_curseg(sbi)) {
 		free(sm_info);
@@ -2806,7 +2811,7 @@ int find_next_free_block(struct f2fs_sb_info *sbi, u64 *to, int left,

 	if (*to > 0)
 		*to -= left;
-	if (get_free_segments(sbi) <= SM_I(sbi)->reserved_segments + 1)
+	if (SM_I(sbi)->free_segments <= SM_I(sbi)->reserved_segments + 1)
 		not_enough = 1;

 	while (*to >= SM_I(sbi)->main_blkaddr && *to < end_blkaddr) {
diff --git a/fsck/segment.c b/fsck/segment.c
index 0307bdd..1cb7d02 100644
--- a/fsck/segment.c
+++ b/fsck/segment.c
@@ -77,6 +77,8 @@ int reserve_new_block(struct f2fs_sb_info *sbi, block_t *to,
 	se = get_seg_entry(sbi, GET_SEGNO(sbi, blkaddr));
 	offset = OFFSET_IN_SEG(sbi, blkaddr);
 	se->type = type;
+	if (se->valid_blocks == 0)
+		SM_I(sbi)->free_segments--;
 	se->valid_blocks++;
 	f2fs_set_bit(offset, (char *)se->cur_valid_map);
 	if (need_fsync_data_record(sbi)) {
--
2.25.1



_______________________________________________
Linux-f2fs-devel mailing list
Linux-f2fs-devel@lists.sourceforge.net
https://lists.sourceforge.net/lists/listinfo/linux-f2fs-devel

Re: [f2fs-dev] [PATCH v2 1/3] f2fs-tools: use 'IS_CUR_SEGNO()' to check if it is current segment

[Chao Yu]

On 2023/9/28 17:20, Wu Bo wrote:
> Use IS_CUR_SEGNO() here can make code more concise and readable.

It missed to add your signed-off tag here, otherwise the patch looks good to me.

Thanks,

> ---
>   fsck/mount.c | 10 +---------
>   1 file changed, 1 insertion(+), 9 deletions(-)
>
> diff --git a/fsck/mount.c b/fsck/mount.c
> index df0314d..e4372cf 100644
> --- a/fsck/mount.c
> +++ b/fsck/mount.c
> @@ -2532,16 +2532,8 @@ void build_sit_area_bitmap(struct f2fs_sb_info *sbi)
>   		ptr += SIT_VBLOCK_MAP_SIZE;
>
>   		if (se->valid_blocks == 0x0 && is_usable_seg(sbi, segno)) {
> -			if (le32_to_cpu(sbi->ckpt->cur_node_segno[0]) == segno ||
> -				le32_to_cpu(sbi->ckpt->cur_data_segno[0]) == segno ||
> -				le32_to_cpu(sbi->ckpt->cur_node_segno[1]) == segno ||
> -				le32_to_cpu(sbi->ckpt->cur_data_segno[1]) == segno ||
> -				le32_to_cpu(sbi->ckpt->cur_node_segno[2]) == segno ||
> -				le32_to_cpu(sbi->ckpt->cur_data_segno[2]) == segno) {
> -				continue;
> -			} else {
> +			if (!IS_CUR_SEGNO(sbi, segno))
>   				free_segs++;
> -			}
>   		} else {
>   			sum_vblocks += se->valid_blocks;
>   		}
