[linux-dvb] AF9015 - unknown tuner 30

[linux-dvb] AF9015 - unknown tuner 30

[Lee Essen]

Hi,

I've been experimenting with a very low-cost dual DVB-T tuner
(annoyingly I've thrown the packaging away now, but I think it was
branded as a Twinhan device, from Maplin (in the UK) on special at
only £29 which interestingly doesn't appear on their web site
anymore), the device itself and the installation guide is completely
unbranded.

The product is described on the Twinhan site, although my one is white
with no markings, but otherwise the same. Interestingly this page
isn't linked from the menu on the left, so I'm not sure if this is
"new" or "discontinued" or what!!!    http://www.twinhan.com/product_AD-TU700
.

It's USB id's are 13D3:3237 and manufacturer is shown as Afatech. The
windows driver .ini file suggests that the device is a UDTT704J. (704J
seems to match Twinhan's product details as well and is on the label
on the back of my device.)

 From digging around a bit (including some of the af9015 drivers on
this site) it looks like this is a af9015 based device and I can get
it to initialise (albeit with a number of errors), the most
interesting is the following:

[290181.920088] af9015_get_biu_config: Tuner type = 0x1E
[290181.920128] af9015_get_biu_config: Unknown tuner 30, please report

So hopefully this means something to you guys -- I have dismantled the
device and the IC's (do you still call them that? :-)) are covered by
a soldered on RF screen/heatsink ... I'm happy to remove this in the
name of science if needed.

I have had a dig around the provided Windows drivers with good old
'strings' and it looks like their driver supports the following
tuners: QT1010, MXL5003D, MXL5005D/R, TDA18271, MT2060 and (I'm
guessing) FS803a.

I'm very happy to help in whatever way I can with this as I'd love to
get this device working.

Thanks,

Lee.
_______________________________________________
linux-dvb mailing list
linux-dvb@linuxtv.org
http://www.linuxtv.org/cgi-bin/mailman/listinfo/linux-dvb

Re: [linux-dvb] AF9015 - unknown tuner 30

[Mark Spieth]

> [290181.920128] af9015_get_biu_config: Unknown tuner 30, please report

this is a AF9013_TUNER_MXL5005R.

mark


_______________________________________________
linux-dvb mailing list
linux-dvb@linuxtv.org
http://www.linuxtv.org/cgi-bin/mailman/listinfo/linux-dvb

Re: [linux-dvb] AF9015 - unknown tuner 30

[Nick Andrew]

On Thu, Apr 03, 2008 at 12:15:48PM +0100, Lee Essen wrote:
> The product is described on the Twinhan site, although my one is white
> with no markings, but otherwise the same. Interestingly this page
> isn't linked from the menu on the left, so I'm not sure if this is
> "new" or "discontinued" or what!!!    http://www.twinhan.com/product_AD-TU700

It gives a 404 error in Chinese now. But it is still available in the
google cache:

  http://209.85.173.104/search?q=cache:0f5wjLtKopAJ:www.twinhan.com/product_AD-TU700.asp+product_AD-TU700&hl=en&ct=clnk&cd=1

It's similar to this:

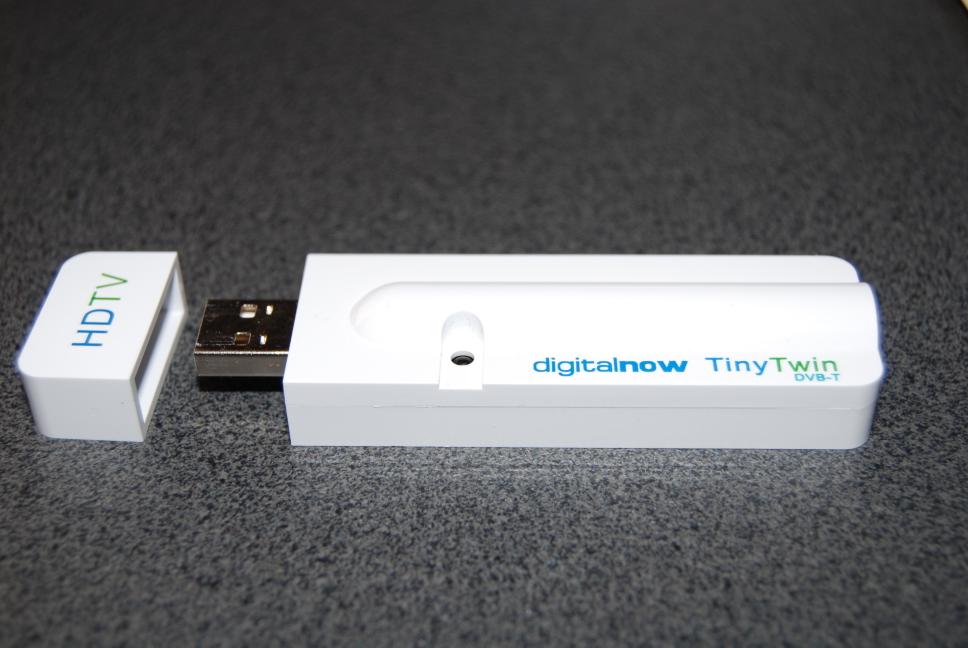

  http://www.nick-andrew.net/TinyTwin/tinytwin-1.jpg (13d3:3226)

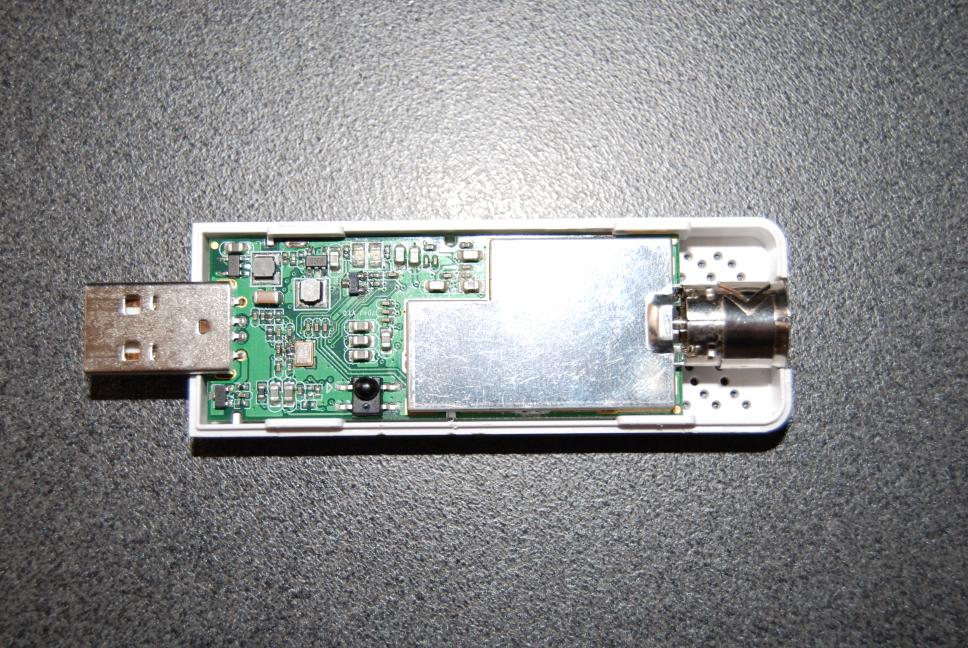

  http://www.nick-andrew.net/TinyTwin/tinytwin-2.jpg

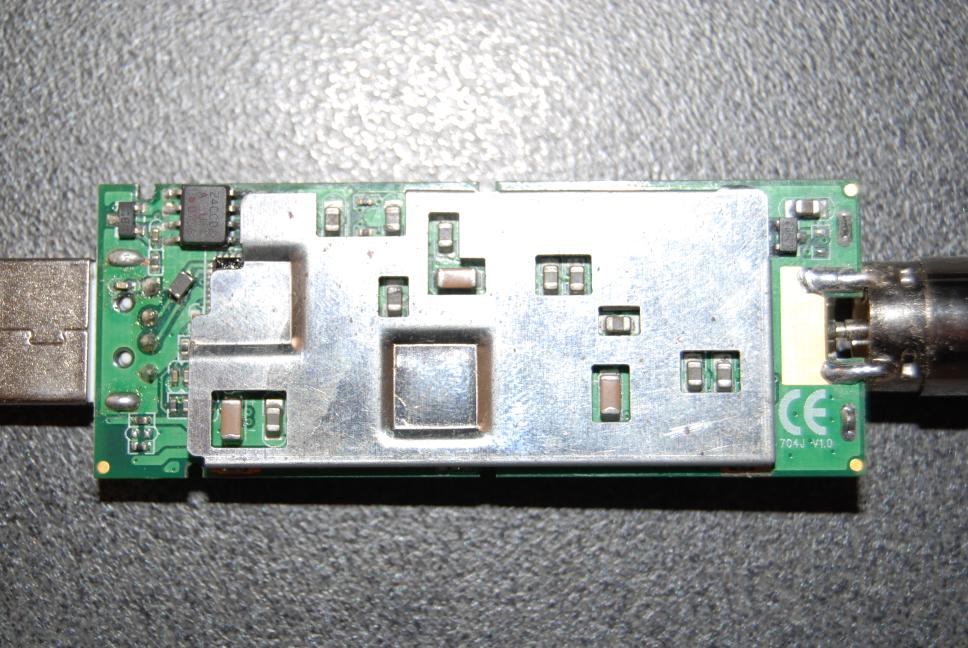

  http://www.nick-andrew.net/TinyTwin/tinytwin-3.jpg

Nick.
--
PGP Key ID = 0x418487E7                      http://www.nick-andrew.net/
PGP Key fingerprint = B3ED 6894 8E49 1770 C24A  67E3 6266 6EB9 4184 87E7

_______________________________________________
linux-dvb mailing list
linux-dvb@linuxtv.org
http://www.linuxtv.org/cgi-bin/mailman/listinfo/linux-dvb

Re: [linux-dvb] AF9015 - unknown tuner 30

[Lee Essen]

Nick,

Interesting ... yes mine looks exactly the same as your pictures,
except mine is marked as a V1.1 and has a red PCB.

There are quite a few low-cost suppliers of this unit in the UK...

http://www.zebracomputers.co.uk/azurewave-dvb-t-ad-tu700-dual-tuner-freeview-usb20-tv-stick-i606394.html
http://www.pcnextday.co.uk/products/ProductDetail.asp?ProductCode=1513-2360

... so I think the unit is fairly widely available. TinyTwin seems to
be an Australian branding -- interestingly on the DigitalNow web site
there is this link???

http://forums.dvbowners.com/index.php?showtopic=9101

Cheers,

Lee.


On 4 Apr 2008, at 01:14, Nick Andrew wrote:

> On Thu, Apr 03, 2008 at 12:15:48PM +0100, Lee Essen wrote:
>> The product is described on the Twinhan site, although my one is
>> white
>> with no markings, but otherwise the same. Interestingly this page
>> isn't linked from the menu on the left, so I'm not sure if this is
>> "new" or "discontinued" or what!!!    http://www.twinhan.com/product_AD-TU700
>
> It gives a 404 error in Chinese now. But it is still available in the
> google cache:
>
>  http://209.85.173.104/search?q=cache:0f5wjLtKopAJ:www.twinhan.com/product_AD-TU700.asp+product_AD-TU700&hl=en&ct=clnk&cd=1
>
> It's similar to this:
>
>  http://www.nick-andrew.net/TinyTwin/tinytwin-1.jpg (13d3:3226)
>  http://www.nick-andrew.net/TinyTwin/tinytwin-2.jpg
>  http://www.nick-andrew.net/TinyTwin/tinytwin-3.jpg
>
> Nick.
> --
> PGP Key ID = 0x418487E7                      http://www.nick-andrew.net/
> PGP Key fingerprint = B3ED 6894 8E49 1770 C24A  67E3 6266 6EB9 4184
> 87E7
